Product Description:

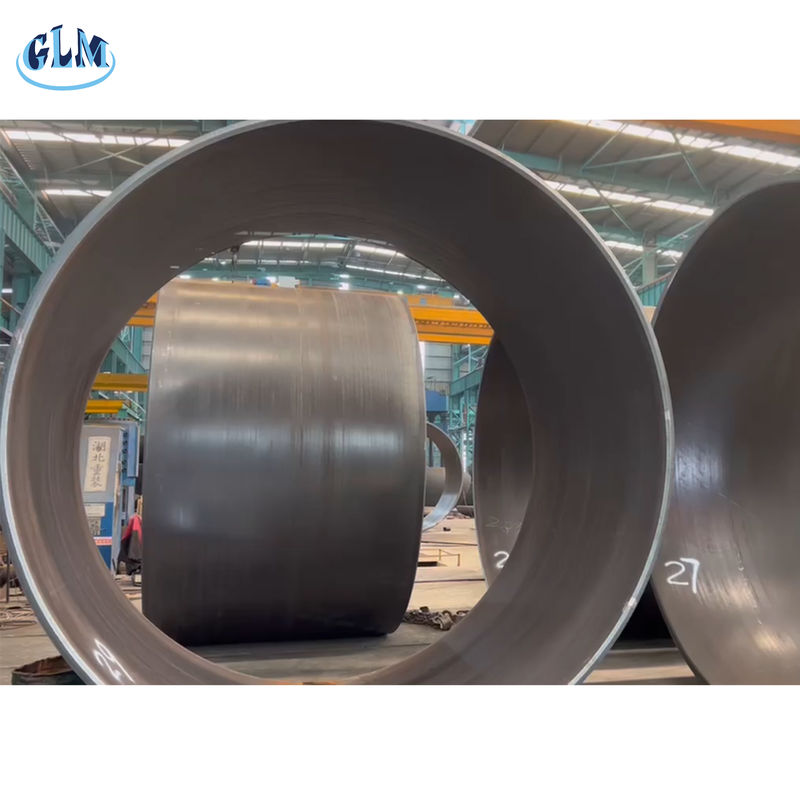

A roll tank shell (also known as a rolled tank shell or cylindrical tank shell) is a core cylindrical component of pressure vessels, storage tanks, or process tanks. It is formed by rolling metal plates into a circular cylinder (via cold rolling or hot rolling) and welding the longitudinal/ circumferential seams, serving as the main "body" to hold media and bear pressure.
Technical Parameters:
| Technics |
Forged |
| Package |
Wooden Case, Pallet, Etc. |
| Application |
Boiler, Heat Exchanger, Power, Etc. |
| Vessel Head Thickness |
According To Customer Requirements |
| Product Name |
Steel Tank Cylinder Shell Rolled, Heavy Thick Tight Steel Rolling |
| Certificate |
ISO9001, PED, Etc. |
| Grade |
Carbon Steel, Aluminum, Stainless Steel SA240 316/316L |
| Forming method |
Hot Forming, Cold Forming |
| Vessel Head Diameter |
According To Customer Requirements |
| Head Type |
Steel Tank Cylinder Shell Rolled |
Applications:
The drum head is widely used in the following scenarios due to its large-size adaptability, economy and medium and low pressure bearing capacity:
1. Large storage tanks and storage tanks
• Commonly used in large vertical storage tanks and horizontal storage tanks in the petroleum, chemical, grain and oil industries as end cover sealing equipment, suitable for storing non-strongly corrosive media such as crude oil, lubricating oil, clean water, chemical raw materials, etc., especially suitable for large storage tanks with a diameter of more than 3 meters.
2. Industrial reaction and mixing equipment
• As end caps in medium and low pressure reactors, mixing tanks and other equipment, such as sewage treatment mixing tanks, food processing storage tanks, etc., to withstand slight pressure and medium impact inside the equipment to ensure the sealed operation of the equipment.
3. Pipeline and pressure vessel terminals
• Used for terminal sealing of long-distance pipelines and ventilation ducts, as well as end caps of large pressure vessels in urban heating and water supply systems, balancing structural strength and installation convenience, and adapting to low-pressure fluid transportation scenarios.
4. Environmental protection and municipal facilities
• Environmental protection equipment such as large-scale garbage leachate treatment tanks and municipal sewage treatment pools can be used as sealing end covers to cope with medium and low pressure conditions, while adapting to the large-scale design requirements of the equipment and reducing the overall manufacturing cost.
Products:
FAQ:
Q: What is the brand name of the Pressure Vessel Dished Head product?
A: The brand name is GLM.
Q: What is the model number of the Pressure Vessel Dished Head product?
A: The model number is Cap.
Q: Where is the Pressure Vessel Dished Head product manufactured?
A: The product is manufactured in China.
Q: What certifications do the Pressure Vessel Dished Head product have?
A: The product is certified with ASME U, U3, U2, PED, ABS, TUV, NB, and ISO.
Q: What is the minimum order quantity for the Pressure Vessel Dished Head product?
A: The minimum order quantity is 1.
